Product Summary

The BSM150GT120DN2 is a 3-phase full-bridge IGBT module.

Parametrics

BSM150GT120DN2 absolute maximum ratings: (1)Collector-emitter voltage: 1200V; (2)Collector-gate voltage: 1200V; (3)Gate-emitter voltage: ± 20V; (4)Power dissipation per IGBT: 1250W; (5)Chip temperature: + 150℃; (6)Storage temperature: -55 to + 150℃

Features

BSM150GT120DN2 features: (1)Solderable Power module; (2)3-phase full-bridge; (3)Including fast free-wheel diodes; (4)Package with insulated metal base plate.

Diagrams

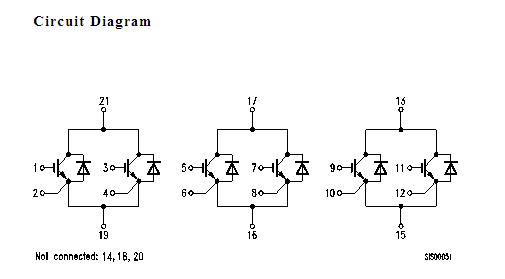

BSM150GT120DN2 Circuit Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

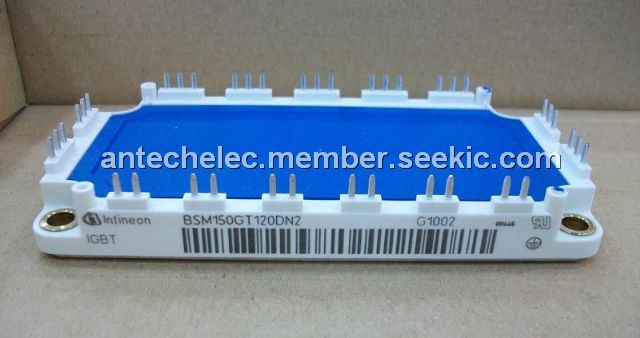

BSM150GT120DN2
BSM150GT120DN2
Infineon Technologies
IGBT Modules 1200V 150A TRIPACK
Data Sheet
0-1: $155.20
1-10: $139.67
