Product Summary

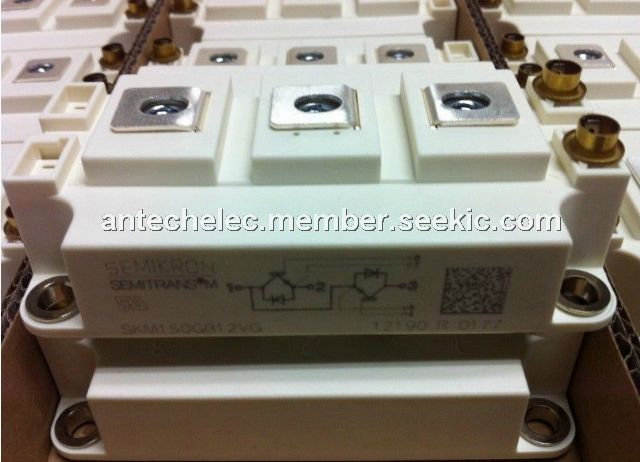

The SKM150GB12VG is an IGBT MODULE. Applications include AC inverter drives, UPS and Electronic welders.
Parametrics
SKM150GB12VG absolute maximum ratings: (1)VCES: 1200V; (2)ICRM: 450A; (3)VGES: -20 to 20V; (4)Tj: -40 to 175℃.
Features
SKM150GB12VG features: (1)Isolated copper baseplate using DBC technology (Direct Copper Bonding); (2)UL recognized, file no. E63532; (3)Increased power cycling capability; (4)With integrated gate resistor; (5)Low switching losses at high di/dt.

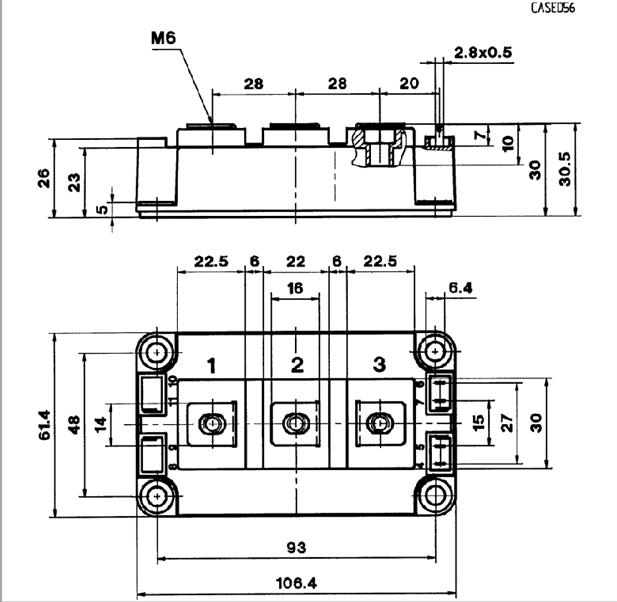

Diagrams
 |
