Product Summary

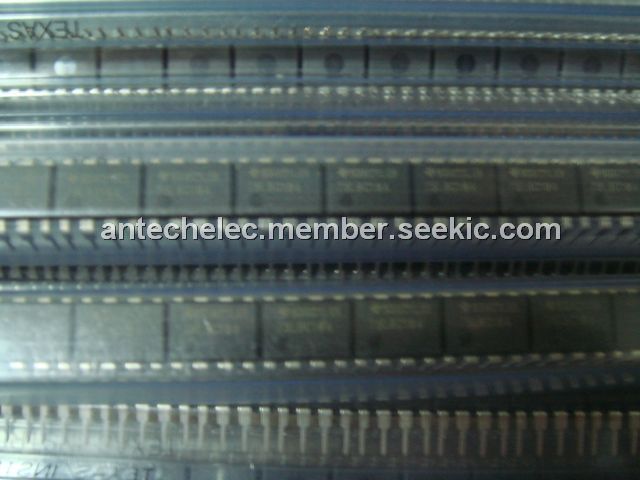

The SN75LBC184P is a differential data line transceiver in the trade-standard footprint of the SN75176 with built-in protection against high-energy noise transients. This feature provides a substantial increase in reliability for better immunity to noise transients coupled to the data cable over most existing devices. The SN75LBC184P can withstand overvoltage transients of 400-W peak(typical). It also includes additional desirable features for party-line data buses in electrically noisy environment applications including industrial process control.
Parametrics
Absolute maximum ratings: (1)Supply voltage, VCC: 0.5 V to 7 V; (2)Continuous voltage range at any bus terminal: 15 V to 15 V; (3)Data input/output voltage: .0.3 V to 7 V; (4)Receiver output current, IO: ±20 mA; (5)Electrostatic discharge: Contact discharge (IEC61000-4-2) A, B, GND: 30 kV; Air discharge (IEC61000-4-2) A, B, GND: 15 kV; Human body model: A, B, GND: 15 kV; All pins: 3 kV; (6)All terminals (Class 3A): 8 kV; (7)All terminals (Class 3B): 1200 V; (8)Continuous total power dissipation: Internally Limited.
Features
Features: (1)Integrated Transient Voltage Suppression; (2)ESD Protection for Bus Terminals Exceeds: ±30 kV IEC 61000-4-2, Contact Discharge; ±15 kV IEC 61000-4-2, Air-Gap Discharge; ±15 kV EIA/JEDEC Human Body Model; (3)Circuit Damage Protection of 400-W Peak(Typical) Per IEC 61000-4-5; (4)Controlled Driver Output-Voltage Slew Rates Allow Longer Cable Stub Lengths; (5)250-kbps in Electrically Noisy Environments; (6)Open-Circuit Fail-Safe Receiver Design; (7)1/4 Unit Load Allows for 128 Devices Connected on Bus; (8)Thermal Shutdown Protection; (9)Power-Up/-Down Glitch Protection; (10)Each Transceiver Meets or Exceeds the Requirements of TIA/EIA-485 (RS-485) and ISO/IEC 8482:1993(E) Standards; (11)Low Disabled Supply Current 300 μA Max; (12)Pin Compatible With SN75176.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN75LBC184P |
Texas Instruments |
Buffers & Line Drivers Trans Volt Spprssn Diff Transceiver |
Data Sheet |
|
|
||||||||||||
|
SN75LBC184PE4 |
Texas Instruments |
Buffers & Line Drivers Trans Volt Spprssn Diff Transceiver |
Data Sheet |
|
|
||||||||||||
