Product Summary

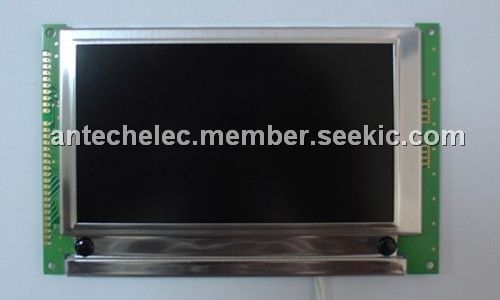

The LMG7420PLFC-X is a 240*128 Dot LCD module. It features black on White Film STN type, transmissive Mode, high Brightness CFL Backlight and high Contrast LC Material.
Parametrics
Absolute maximum ratings: (1)Supply Voltage(Logic), VDD - VSS: 0 to 6.5 V; (2)Supply Voltage (LC Drive), VDD - VEE: 0 to 20.5 V; (3)Input Voltage, VI: -0.3 to 0.3+VDD V; (4)Operating Temperature, TOP: 0 to 50 ℃; (5)Storage Temperature, TST: -20 to 60 ℃.
Features
Features: (1)Black on White Film STN TYPE; (2)Transmissive Mode; (3)High Brightness CFL Backlight; (4)High Contrast LC Material; (5)Built-in LCD Controller T6963C.
Diagrams
<IMG border=0 src="http://www.seekic.com/uploadfile/ic-mfg/201271935233605.jpg">
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 LMG7420PLFC-X |
Other |
|
Data Sheet |
Negotiable |
|
||||
