Product Summary

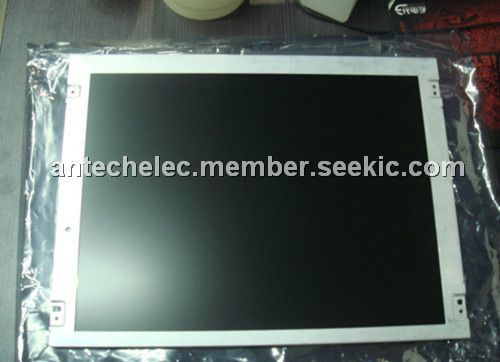

The NL10276AC30-04R is a TFT (thin film transistor) active matrix color liquid crystal display (LCD) comprising amorphous silicon TFT attached to each signal electrode, a driving circuit and a backlight. The NL10276AC30-04R has a built-in backlight with inverter. It is widely used in desk-top type of PC, engineering work station, display terminal for control system, monitor for process controller.
Parametrics
Absolute maximum ratings: (1)Supply voltage: VCC: –0.3 to +6.0 V at Ta = 25℃; VDDB: –0.3 to +14 V at Ta = 25℃; (2)Logic input voltage, VI: –0.3 to VCC + 0.3 V at Ta = 25℃; (3)Logic input voltage(backlight-logic signal), VIBL1: –0.3 to +5.5 V at Ta = 25℃; (4)Logic input voltage(backlight-BRTL signal), VIBL2: –0.3 to +1.5 V at Ta = 25℃; (5)Storage temp.,TST: –20 to +60 ℃; (6)Operating temp., TOP: 0 to +50 ℃ at Module surface Note ; (7)Relative humidity (RH): ≤ 95 % at Ta ≤ 40℃; ≤85 % at 40 < Ta ≤50℃; (8)Absolute humidity: Absolute humidity shall not exceed Ta = 50℃, Relative humidity =85% level. g/m3 at Ta > 50℃.
Features
Features: (1)Wide viewing angle (with retardation film); (2)High luminance; (3)Low reflection; (4)LVDS interface (Equivalent of THC63LVDF64A, THine Electronics, Inc.); (5)Incorporated edge type backlight (two lamps, inverter) and Lamp holder replaceable.

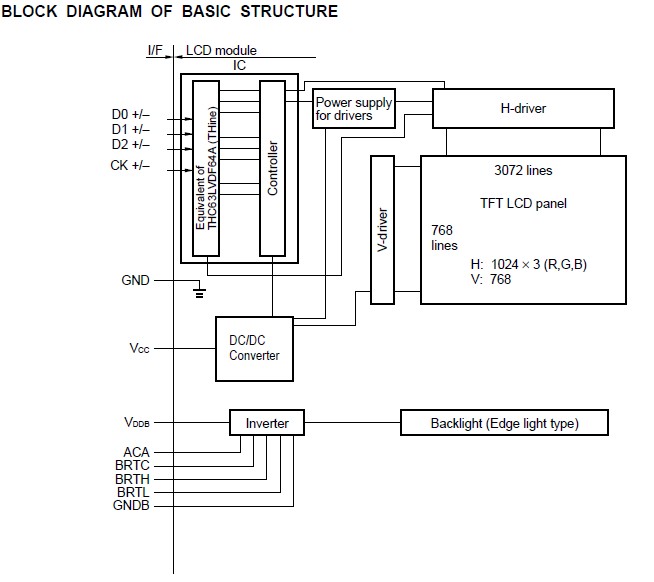

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 NL10276AC30-04R |
Other |
|
Data Sheet |
Negotiable |
|
||||||
