Product Summary
The PM150CL1A120 is an intelligent power module. Applications include general purpose inverter, servo drives and other motor controls.
Parametrics
PM150CL1A120 absolute maximum ratings: (1)Collector-Emitter Voltage: 1200V; (2)Collector Current: 150A; (3)Collector Current (Peak): 300A; (4)Collector Dissipation: 833W; (5)Junction Temperature: –20 ~+150℃.
Features
PM150CL1A120 features: (1)Adopting new 5th generation Full-Gate CSTBTTM chip; (2)The over-temperature protection which detects the chip Surface temperature of CSTBTTM is adopted; (3)Error output signal is possible from all each protection upper and lower arm of IPM; (4)Compatible L-series package; (5)3φ 150A, 1200V Current-sense and temperature sense IGBT type inverter; (6)Monolithic gate drive & protection logic; (7)Detection, protection & status indication circuits for, shortcircuit,; (8)over-temperature & under-voltage (P-FO available from upper arm devices); (9)UL Recognized.

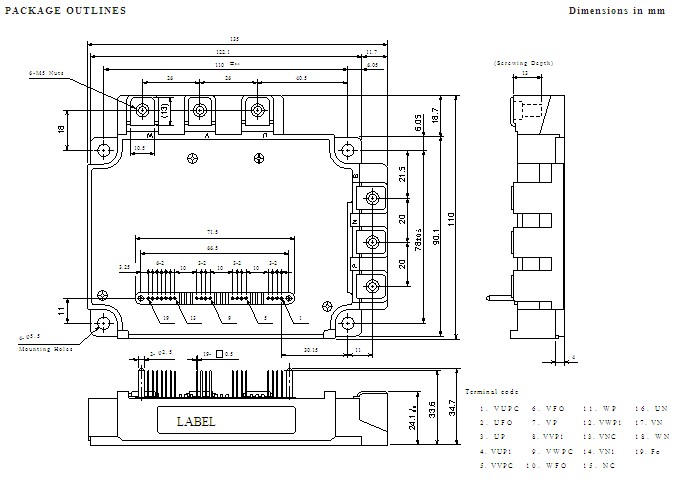

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PM150CL1A120 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
|
PM150CBS060 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
PM150CL1A060 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
PM150CL1A120 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
PM150CL1B060 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
PM150CLA060 |
|
MOD IPM L-SER 6PAC 600V 150A |
Data Sheet |
|
|
||||||
|
PM150CLA120 |
|
MOD IPM L-SER 6PAC 1200V 150A |
Data Sheet |
|
|
||||||
