Product Summary

The 8.4 inch color TFT LCD module G084SN05 is designed for display units for Industrial Applications. The screen format is intended to support the SVGA (800(H) x 600(V)) screen and 16.2M (RGB 8-bits) or 262k colors (RGB 6-bits). All input signals are LVDS interface compatible. The module does not contain an inverter card for backlight.

Parametrics

Absolute maximum ratings: (1)Logic/LCD Drive Voltage, Vin: -0.3 to +3.6 [Volt]; (2)Input Voltage of Signal, Vin: -0.3 to VDD+0.3 [Volt]; (3)CCFL Current, ICFL: 4 to 7 [mA] rms; (4)CCFL lgnition Voltage, Vs: 650 Vrms at 25℃; 850 Vrms at 0℃; (5)Operating Temperature, TOP: -30 to +85 [℃]; (6)Operation Humidity, HOP: 8 to 95 [%RH]; (7)Storage Temperature, TST: -30 to +85 [℃]; (8)Storage Humidity, HST: 5 to 95 [%RH].

Features

Specifications: (1)Screen Diagonal [inch]: 8.4 ( 213.4mm ); (2)Active Area [mm]: 170.4(H) x 127.8(V); (3)Pixels H x V: 800x3(RGB) x 600; (4)Pixel Pitch [mm]: 0.213x 0.213; (5)Pixel Arrangement: R.G.B. Vertical Stripe; (6)Display Mode: TN, Normally White; (7)Nominal Input Voltage VDD [Volt]: 3.3 typ.; (8)Typical Power Consumption [Watt]: 5.8 typ.; (9)Physical Size [mm]: 203.0(W) x 142.5(H) x 8.0(D) (typ.); (10)Electrical Interface: 1 channel LVDS; (11)Surface Treatment: Anti-glare, Hardness 3H; (12)Support Color: 262K(6-bit) / 16.2M(8-bit).

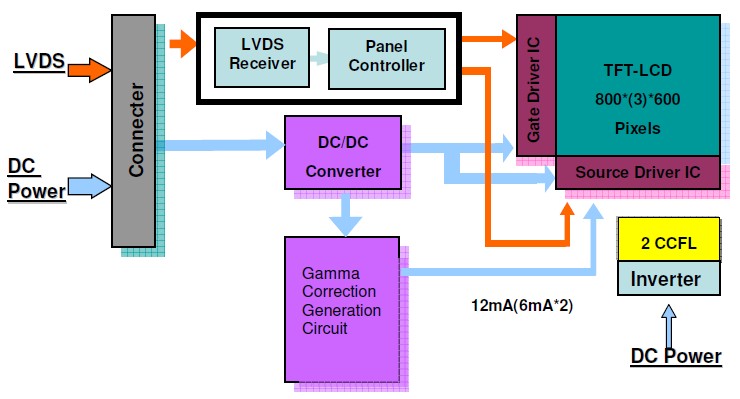

Diagrams
