Product Summary
The RT9167-50GB is a 300mA low dropout and low noise micropower regulator suitable for portableapplications. The output voltages range from 1.5V to 5.0V in 100mV increments and 2% accuracy. The device is designed for use with very low ESRcapacitors. The output remains stable even with 1μF ceramic output capacitor. The RT9167-50GB uses and internal PMOS as the passdevice, which does not cause extra GND current inheavy load and dropout conditions.
Parametrics
RT9167-50GB absolute maximum ratings: (1)Input Voltage: 8V; (2)Power Dissipation, PD @ TA = 25℃: SOT-23-5: 0.4W; (3)Operating Junction Temperature Range: -40℃ to 125℃; (4)Storage Temperature Range: -65℃ to 150℃; (5)Package Thermal Resistance: SOT-23-5, θJA: 250℃/W; SOT-23-5, θJc: 130℃/W; (6)Lead Temperature (Soldering, 5 sec.): 260℃.
Features
RT9167-50GB features: (1)Stable with Low-ESR Output Capacitor; (2)Low Dropout Voltage (220mV and 200mA); (3)Low Operation Current - 80μA Typical; (4)Shutdown Function; (5)Low Noise Output; (6)Low Temperature Coefficient; (7)Current and Thermal Limiting; (8)Custom Voltage Available; (9) SOT-23-5 Packag; (10)ROHS compliant and 100% lead(pb)-free.

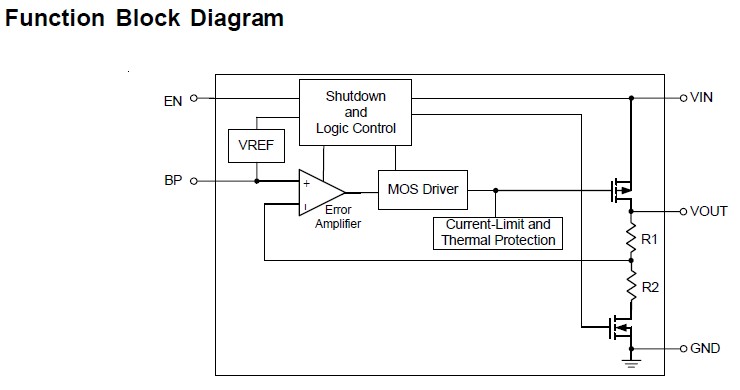

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 RT9167-50GB |
|
IC REG LDO 5V .3A SOT23-5 |
Data Sheet |
|
|
||||||
|
RT9167-50GBR |
|
IC REG LDO 5V .3A SOT23-5 |
Data Sheet |
|
|
||||||
