Product Summary

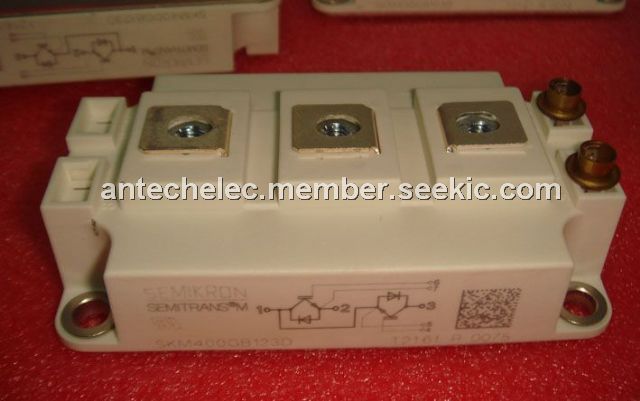

The SKM400GB123D is an IGBT Module. The application of the SKM400GB123D includes switching.
Parametrics
SKM400GB123D absolute maximum ratings: (1)VCES: 1200V; (2)IC: 400A when TC=25℃; 330A wehn Tc=80℃; (3)ICRM: 600A; (4)VGES: ±20V; (5)Tvj: -40 to 150℃; (6)Tstg: -40 to 125℃; (7)Visol: 2500V.
Features
SKM400GB123D features: (1)MOS iput (voltage controlled); (2)N channel, homgeneous Si; (3)Low inductance case; (4)Very low tail current with low temperature dependence; (5)High short circuit capability, self limiting to 6 ×Icnom; (6)Latch-up free; (7)Fast & soft CAL diodes; (8)Isolated copper baseplate using DBC direct copper bonding technology; (9)Large clearance and creepage distances.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 SKM400GB123D |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
SKM400GA123D |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SKM400GA124D |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SKM400GA128D |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SKM400GA173D |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SKM400GAL124D |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SKM400GAL125D |
Other |
|
Data Sheet |
Negotiable |
|
||||
