Product Summary

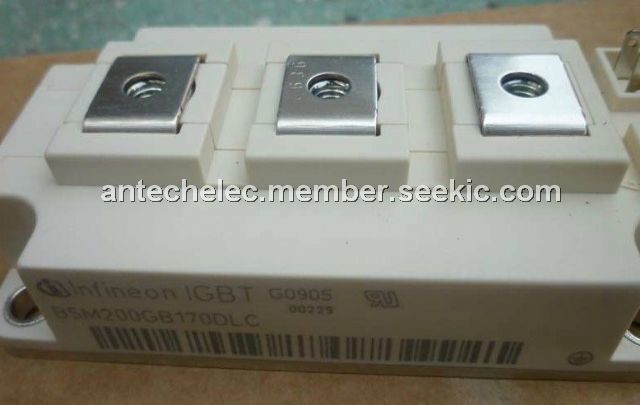

The BSM200GB170DLC is an IGBT Module.

Parametrics

BSM200GB170DLC electrical properties: (1)collector-emitter voltage: 1700v; (2)DC-collector current: 200A/ 400A; (3)repetitive peak collctor current: 400A; (4)total power dissipation: 1660W; (5)gate-emitter peak voltage: ±20v; (6)DC forward current: 200A; (7)repetitive peak forw. current: 400A; (8)insulation test voltage: 3.4kV.

Features

BSM200GB170DLC Mechanical properties: (1)clearance: 11mm; (2)mounting torque: 5Nm; (3)terminal connection torque: 5Nm; (4)weight: 420g.

Diagrams

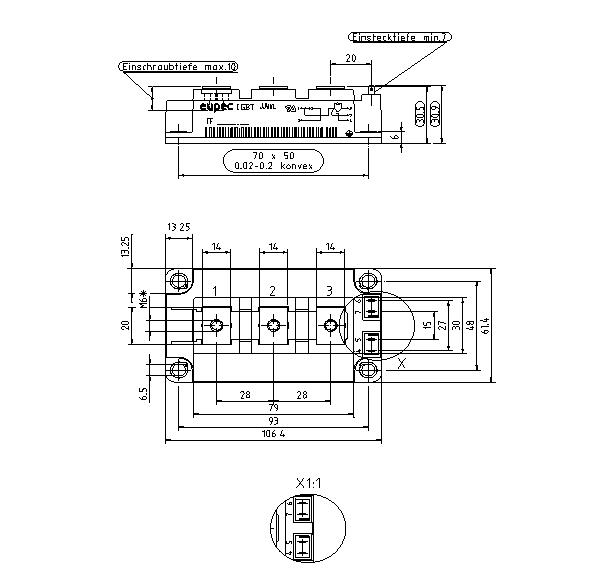

BSM200GB170DLC dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BSM200GB170DLC
BSM200GB170DLC
Infineon Technologies
IGBT Modules 1700V 200A DUAL
Data Sheet
0-6: $149.79
6-10: $134.81
