Product Summary
The 2MBI450U4N-120-50 is an IGBT module.
Parametrics
2MBI450U4N-120-50 absolute maximum ratings: (1)Collector-Emitter voltage VCES: 1700V; (2)Gate-Emitter voltage VGES: ±20 V; (3)Collector current Ic Continuous Tc=25℃: 600A; (4)Collector power dissipation Pc: 2080 W; (5)Junction temperature Tj: 150℃; (6)Storage temperature Tstg: -40 to +125℃.
Features
2MBI450U4N-120-50 features: (1)High speed switching; (2)Voltage drive; (3)Low inductance module structure.

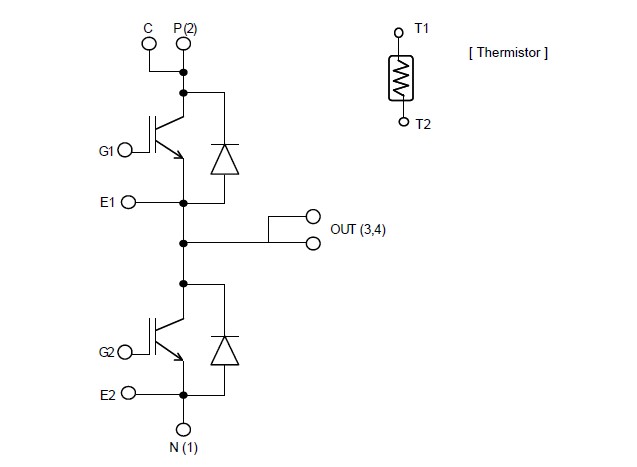

Diagrams
 |
