Product Summary

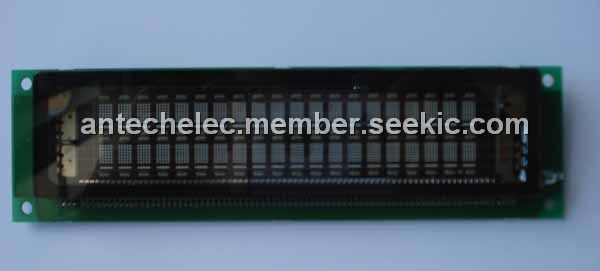

The 20S207DA4 is a vacuum fluorescent display module.

Parametrics

Absolute maximum ratings: (1)supply voltage, VCC: 7.0vdc max; (2)input signal voltage, VIS: 0 to VCC vdc.

Features

Features: (1)simple connection to the host system.Either parallel or serial input interface can be selected. in case of serial input, it is possible to choose 1200, 2400, 4800, or 9600 bps; (2)since a DC/DC converters is used, only +5Vdc power source is required to operate the module; (3)one chip micom offers ASCII +European or ASCII+Japanese Katakana font; (4)four brightness levels can be selected by dimming function; (5)high quality blue-green vacuum fluorescent display provides an attractive and readable medium. Other colors can be achieved by simple wavelength filters; (6)characters are provided with a 5 ×7 dot matrix; (7)the module has up to 16 user definable characters.
