Product Summary

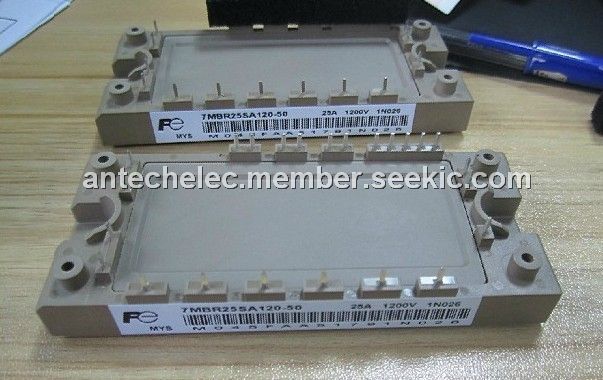

The 7MBR25SA120-50 is an IGBT module. Applications include Inverter for motor drive, AC and DC servo drive amplifier and Uninterruptible power supply.
Parametrics
7MBR25SA120-50 absolute maximum ratings: (1)Collector-Emitter voltage(inverter): 1200V; (2)Gate-Emitter voltage(inverter): ±20V; (3)Collector current-Continuous(inverter): 35A/25A; (4)Collector current-1mS(inverter): 70A/50A; (5)Collector Power Dissipation(inverter): 180W; (6)Junction temperature: 150℃; (7)Storage temperature: -40～+125℃; (8)Isolation voltage: 2500VAC; (9)Mounting Screw Torque: 3.5N.m; (10)Collector-Emitter voltage(brake): 1200V; (11)Gate-Emitter voltage(brake): ±20V; (12)Collector current-Continuous(brake): 25A/15A; (13)Collector current-1mS(brake): 50A/30A; (14)Collector Power Dissipation(brake): 110W; (15)Repetitive peak reverse voltage(converter): 1600V; (16)Average Output Current(converter): 25A.
Features
7MBR25SA120-50 features: (1)Low VCE(sat); (2)Compact package; (3)P.C. board mount; (4)Converter diode bridge, Dynamic brake circuit.
