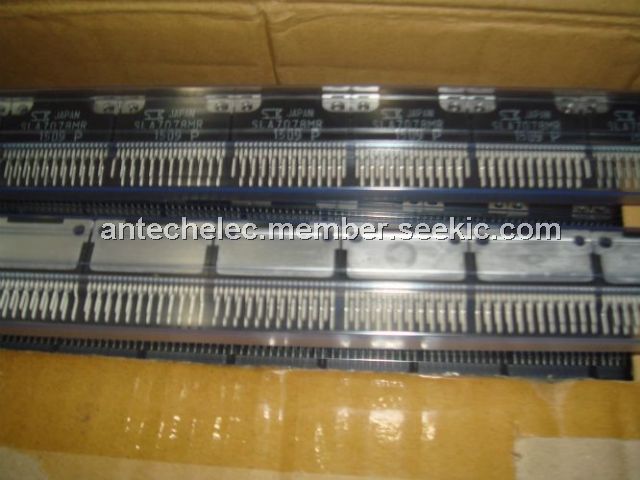

SLA7078MPR

motor driver, Built-in sequencer, 0.3 V, ZIP23

Rated 5 Rating 5 | reviews | Write a review

Price:: US $6.30~7.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $6.30~7.50

PartNumber:: SLA7078MPR

Brand:: Sanken electric - Sanken | Pack: ZIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Christina's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-06-03

From Other Seller

Part Number:SLA7078MPR
US $6.30 - 7.50
IRFP260N

US $1.30 - 4.20 / Piece
(0) Remove
MOC3063

US $0.32 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The SLA7078MPR motor driver IC features 2-phase stepper unipolar drivers. The clock-in type input interface allows simplified control logic, and options for built-in sense current detectionand load circuit short or open protection (patent pending) provide lower loss,and lower thermal resistance. The SLA7078MPR is pin-compatibile, supporting rapid design of application variants.The built-in excitation distribution circuit (sequencer) allows motor controlusing only the CLOCK signal for simple operations (rotate/stop), with motorspeed control by frequency input into CLOCK pin. This eliminates logic signallines required for conventional phase-input methods, and reduces demand onheavily-used CPUs.

Parametrics

SLA7078MPR absolute maximum ratings: (1)Load (Motor) Supply Voltage: 46 V; (2)Main Power Supply Voltage: 46 V; (3)Logic Supply Voltage: 7 V; (4)Logic Input Voltage: -0.3 to VDD+0.3 V; (5)REF Input Voltage: -0.3 to VDD+0.3V; (6)Sense Voltage: ±2 V; (7)Power Dissipation: 4.7 W; (8)Junction Temperature: 150℃; (9)Ambient Temperature:–20 to 85℃; (10)Storage Temperature:–30 to 150℃.

Features

SLA7078MPR features: (1)Power supply voltages; (2)Maximum output currents: 1 A, 1.5 A, 2 A, 3 A; (3)Built-in sequencer; (4)Simplified clock-in stepping control; (5)Microstepping at full-, half-, quarter-, eighth-, and sixteenth-steps; (6)Built-in sense resistor, RSInt; (7)All variants are pin-compatible for enhanced design flexibility; (8)ZIP type 23-pin molded package (SLA package); (9)Self-excitation PWM current control with fixed off-time; off-time adjusted automatically by step reference current ratio (3 levels); (10)Built-in synchronous rectifying circuit reduces losses at PWM off; (11)Synchronous PWM chopping function prevents motor noise in Hold mode; (12)Sleep mode for reducing the IC input current in stand-by state; (13)Built-in protection circuitry against motor coil opens/shorts option available.
