Product Summary

BSM25GP120 is an IGBT module.

Parametrics

BSM25GP120 absolute maximum ratings: (1)repetitive peak reverse voltage: 1600V; (2)RMS forward current per chip: 40A; (3)DC forward current: 25A.

Features

BSM25GP120 electrical properties: (1)forward voltage: 1.1v(max.); (2)threshold voltage: 0.8V; (3)slope resistance: 10.5mΩ; (4)reverse current: 2mA.

Diagrams

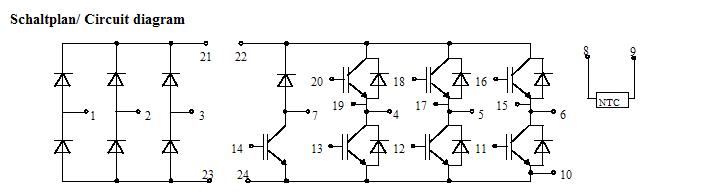

BSM25GP120 Circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

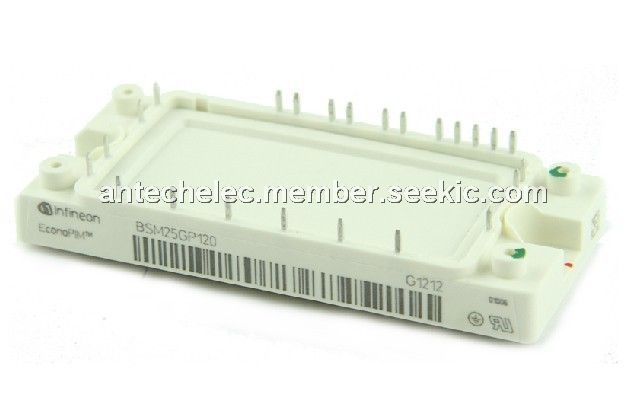

BSM25GP120
BSM25GP120

Infineon Technologies

IGBT Modules 1200V 25A PIM

Data Sheet

0-1: $53.51
1-5: $50.83
5-10: $48.16
BSM25GP120_B2
BSM25GP120_B2

Infineon Technologies

IGBT Modules IGBT 1600V 25A

Data Sheet

Negotiable
