Product Summary

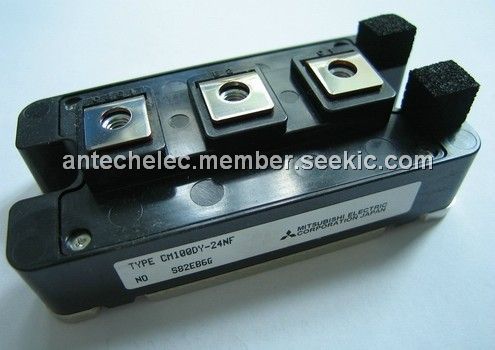

The CM100DY-24NF is an Insulated Type IGBT module for General purpose inverters & Servo controls, etc.
Parametrics
CM100DY-24NF absolute maximum ratings: (1)Collector-emitter voltage: 1200V; (2)Gate-emitter voltage: ±20V; (3)Maximum collector dissipation: 650W; (4)Junction temperature: -40~150℃; (5)Storage temperature: -40~125℃.
Features
CM100DY-24NF features: (1)IC: 100A; (2)VCES: 1200V; (3)Insulated Type; (4)2-elements in a pack.

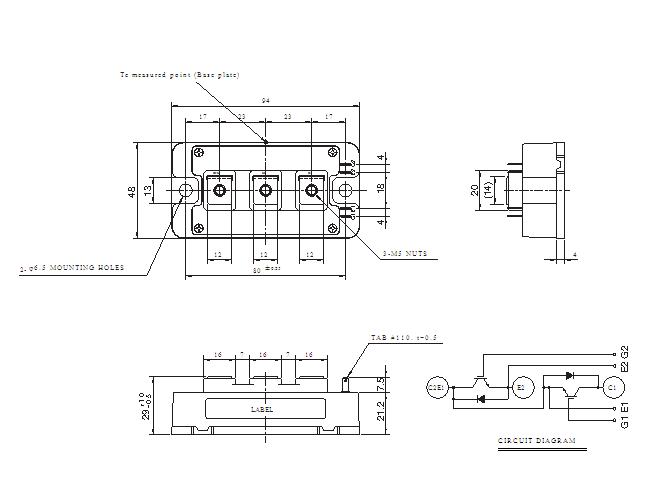

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CM100DY-24NF |
|
IGBT MOD DUAL 1200V 100A NF SER |
Data Sheet |
|
|
||||||||||||||||||
