Product Summary

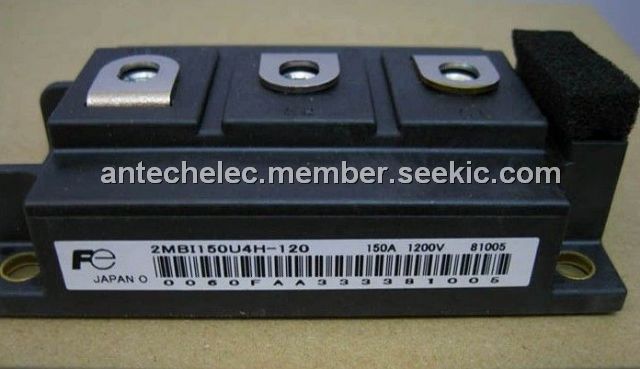

The 2MBI150U4H-120 is a High speed switching IGBT module. Applications include Inverter for Motor Drive, AC and DC Servo Drive Amplifier, Uninterruptible Power Supply and Industrial machines, such as Welding machines.
Parametrics
2MBI150U4H-120 absolute maximum ratings: (1)Collector-emitter voltage: 1200V; (2)Gate-Emitter voltage: ±20V; (3)Collector power dissipation: 780W; (4)Junction temperature: 150℃; (5)Storage temperature: -40 to 125℃.
Features
2MBI150U4H-120 features: (1)High speed switching; (2)Voltage drive; (3)Low Inductance module structure.

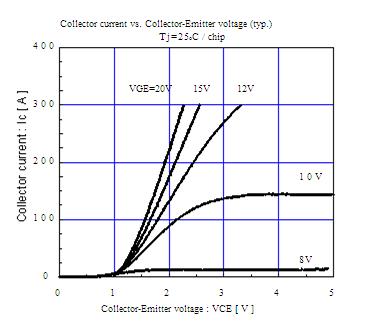

Diagrams
 |
