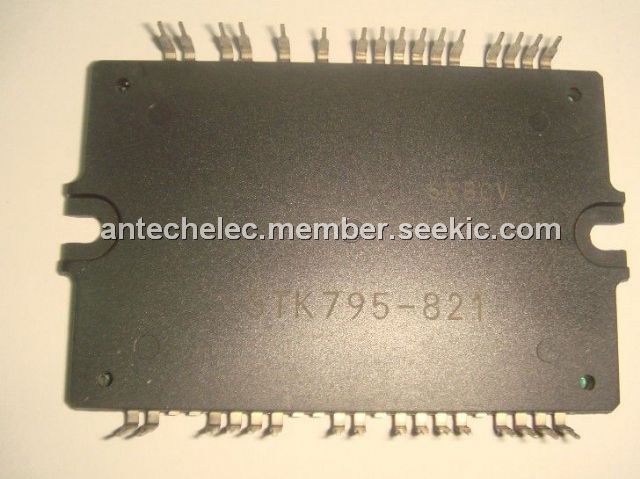

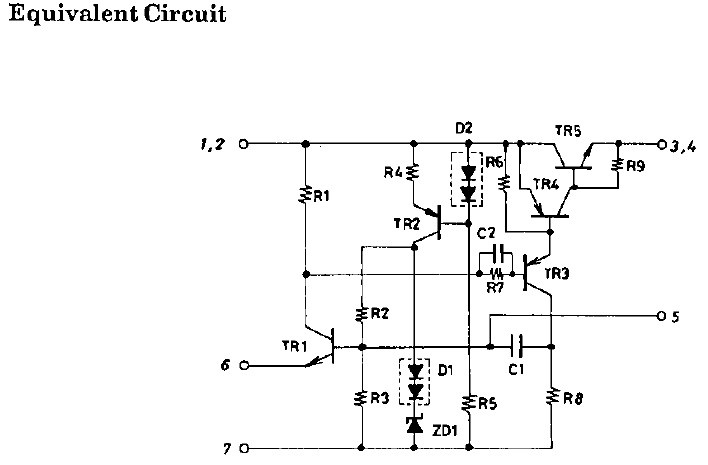

The STK795-821 is a chopper type regulator. It is possible to provide a 5v output power supply circuit with high effiviency. The device contains a transisitor for overcurrent protector and possible to set the protection level externally.
Parametrics
Maximum ratings: (1)maximum DC input voltage, Vin(DC)max: 40v; (2)maximum output current, Iomax: 3A; (3)operating case temperature, Tc: 105℃; (4)junction temperature, Tj: 150℃; (5)storage temperature, Tstg: -30 to +105℃.
Features
Features: (1)self-oscillation type chopper regulator power IC using Sanyos original IMST substrate; (2)The STK795, being a 5v chopper IC , is more advantageous in the following points as compared with series regulator ICs: possible to provide a 5v output power supply circuit with high effiviency; since the input voltage range is wide, no more tahn one rectify/smooothing circuit is required to provide a multi-output power supply circuit which also delivers 12v or 24v output; (3)functional trimming is used to set 5v output with high accuracy; (4)cutoff function to cut off output voltage by external signal; (5)contains a transisitor for overcurrent protector and possible to set the protection level externally.
