Product Summary

The CP2102 is a highly-integrated USB-to-UART Bridge Controller providing a simple solution for updating RS-232designs to USB using a minimum of components and PCB space. The CP2102 includes a USB 2.0 full-speedfunction controller, USB transceiver, oscillator, EEPROM, and asynchronous serial data bus (UART) with full modem control signals in a compact 5 x 5 mm QFN-28 package. No other external USB components are required.

Parametrics

CP2102 absolute maximum ratings: (1)Ambient temperature under bias: -55 to 125℃; (2)Storage Temperature: -65 to 150℃; (3)Voltage on any I/O Pin or RST with respect to GND: -0.3 to 5.8V; (4)Voltage on VDD with respect to GND: -0.3 to 4.2V; (5)Maximum Total current through VDD and GND: 500mA; (6)Maximum output current sunk by RST or any I/O pin: 100mA.

Features

CP2102 features: (1)Single-Chip USB to UART Data Transfer; (2)USB Function Controller; (3)Asynchronous Serial Data BUS (UART); (4)Virtual COM Port Device Drivers; (5)Lead free 28-pin QFN (5 x 5 mm); (6)Temperature Range: –40 to +85℃.

Diagrams

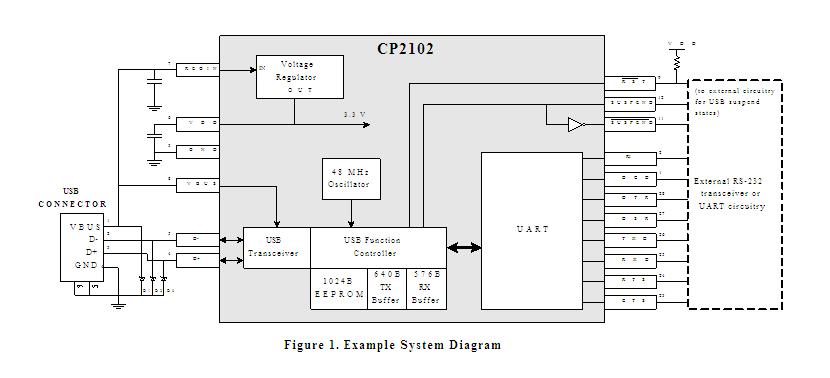

CP2102 System Diagram
