Product Summary

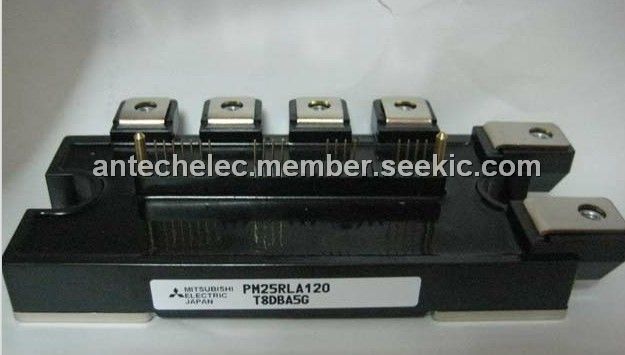

The PM25RLA120 is an IGBT module. Applications include General purpose inverter, servo drives and other motor controls.

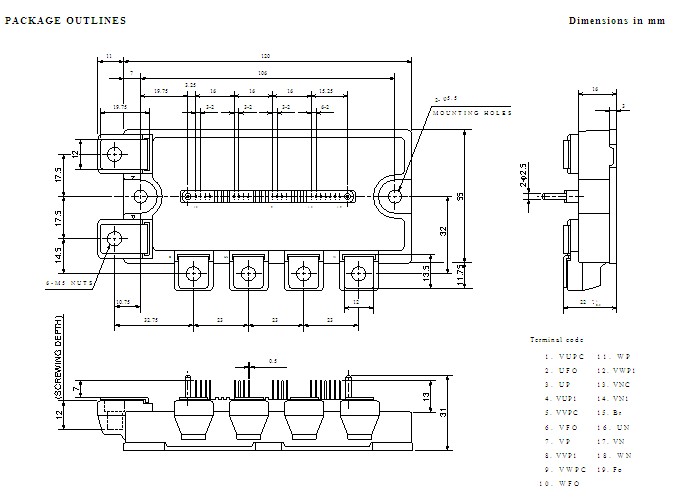

Parametrics
PM25RLA120 absolute maximum ratings: (1)Collector-Emitter Voltage: 1200V; (2)Collector Current: 25A; (3)Collector Current (Peak): 50A; (4)Collector Dissipation: 150W; (5)Junction Temperature: -20 ~ +150℃.
Features
PM25RLA120 features: (1)Adopting new 5th generation IGBT (CSTBT) chip, which performance is improved by 1μm fine rule process.; (2)I adopt the over-temperature conservation by Tj detection of CSTBT chip, and error output is possible from all each conservation upper and lower arm of IPM.; (3)Current rating of brake part increased. 60% for the current rating of inverter part.
