Product Summary

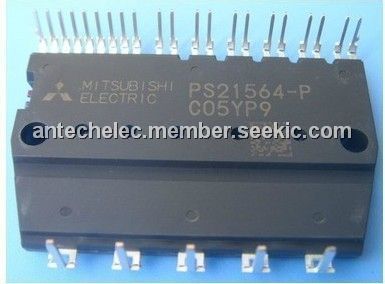

The PS21564-P is an inverter drive for small power motor control.
Parametrics
PS21564-P absolute maximum ratings: (1)Supply voltage: 450V; (2)Supply voltage (surge): 500V; (3)Collector-emitter voltage: 600V; (4)Each IGBT collector current: 15A; (5)Each IGBT collector current (peak): 30A; (6)Collector dissipation: 22.2W; (7)Junction temperature: –20~+125℃.
Features
PS21564-P features: (1)For upper-leg IGBTS :Drive circuit, High voltage isolated high-speed level shifting, Control supply under-voltage (UV)protection; (2)For lower-leg IGBTS : Drive circuit, Control supply under-voltage protection (UV), Short circuit protection (SC); (3)Fault signaling : Corresponding to an SC fault (Lower-leg IGBT)or a UV fault (Lower-side supply); (4)Input interface : 3, 5V line CMOS/TTL compatible. (High Active); (5)UL Approved : Yellow Card No. E80276.

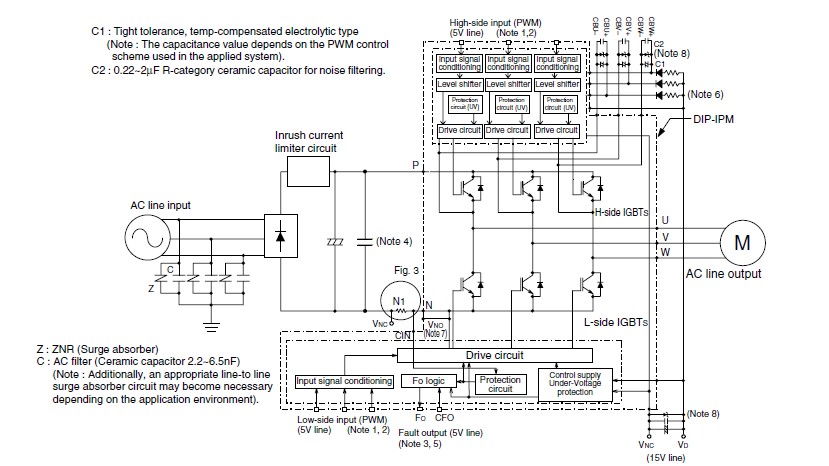

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 PS21564-P |
|
MOD IPM 600V 15A MINI DIP |
Data Sheet |
Negotiable |
|
||||
