Product Summary

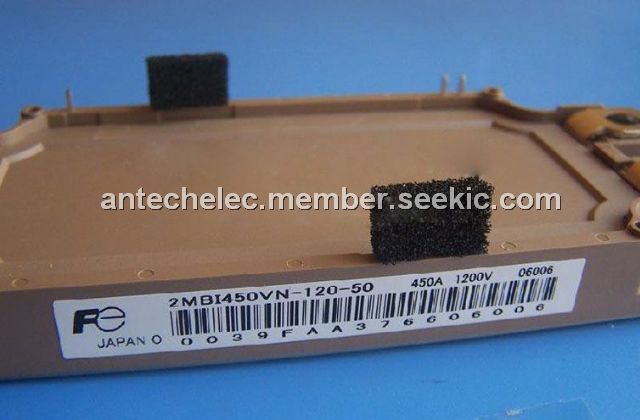

The 2MBI450VN-120-50 is an IGBT MODULE. Applications include Inverter for Motor Drive, AC and DC Servo Drive Amplifier, Uninterruptible Power Supply and Industrial machines, such as Welding machines.
Parametrics
2MBI450VN-120-50 absolute maximum ratings: (1)Collector-Emitter voltage(inverter): 1200V; (2)Gate-Emitter voltage(inverter): ±20V; (3)Collector power dissipation(inverter): 2270W; (4)Junction temperature: 175℃; (5)Case temperature: 125℃; (6)Storage temperature: -40 to 125℃.
Features
2MBI450VN-120-50 features: (1)High speed switching; (2)Voltage drive; (3)Low Inductance module structure.

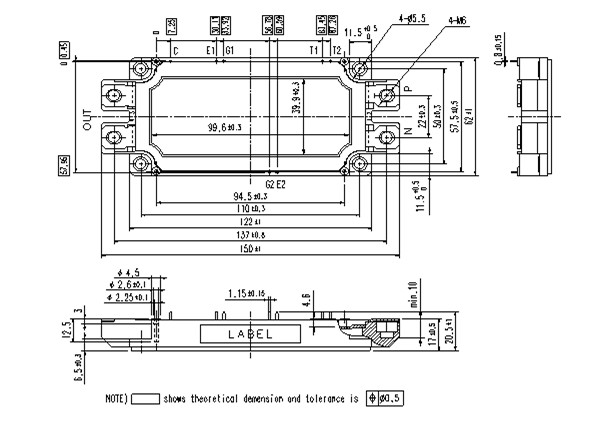

Diagrams
![]() |
