Product Summary

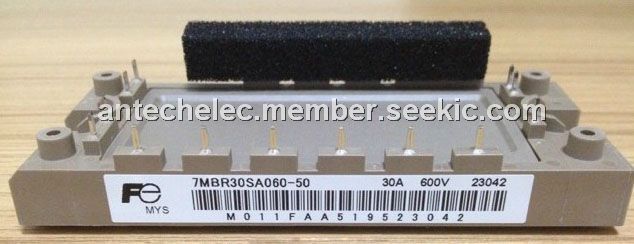

The 7MBR30SA060-50 is an IGBT Module. Applications include Inverter for motor drive, AC and DC servo drive amplifier and Uninterruptible power supply.
Parametrics
7MBR30SA060-50 absolute maximum ratings: (1)Inverter-Collector-Emitter voltage: 600V; (2)Inverter-Gate-Emitter voltage: ±20A; (3)Inverter-Collector power dissipation: 120W; (4)Operating junction temperature: +150; (5)Storage temperature: -40 to +125; (6)Mounting screw torque: 3.5 *1 N·m; (7)Brake--Gate-Emitter voltage: ±20V; (8)Brake--Collector power dissipation: 80W.
Features
7MBR30SA060-50 features: (1)Low VCE(sat); (2)Compact package; (3)P.C. board mount; (4)Converter diode bridge, Dynamic brake circuit.

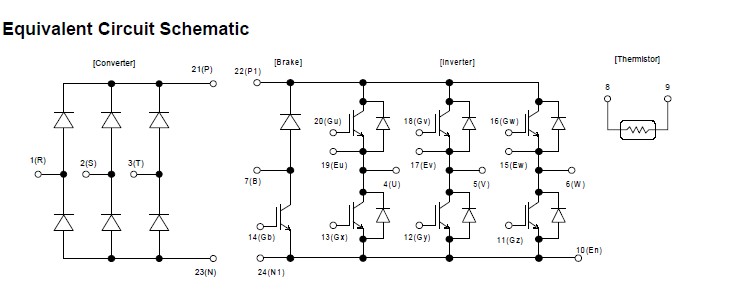

Diagrams
