Product Summary

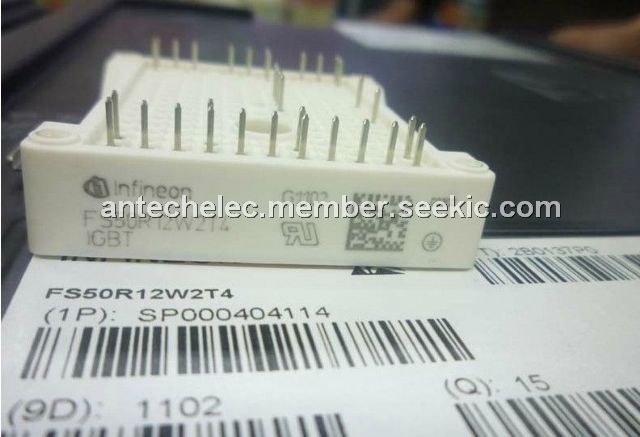

The FS50R12W2T4 is an EasyPACK module with Trench/Fieldstop IGBT4 and Emitter Controlled 4 diode and NTC. Tpical applications include airconditions, motor drives, servo drives and ups systems.
Parametrics
FS50R12W2T4 absolute maximum ratings: (1)collector-emitter voltage: 1200V; (2)DC-collector current: 50A/83A; (3)repetitive peak collector current: 100A; (4)total power dissipation: 335W; (5)gate-emitter peak voltage: ±20V.
Features
FS50R12W2T4 features: (1)Low Switching Losses; (2)Trench IGBT 4; (3)with positive Temperature Coefficient; (4)Low Thermal Resistance; (5)Compact Design; (6)Solder Contact Technology; (7)Rugged mounting due to integrated mounting clamps.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FS50R12W2T4 |
Infineon Technologies |
IGBT Modules IGBT 1200V 50A |
Data Sheet |
|
|
||||||||
|
FS50R12W2T4_B11 |
Infineon Technologies |
IGBT Modules IGBT 1200V 50A |
Data Sheet |
|
|
||||||||
