Product Summary

The RHRP30120 is a hyperfast diode with soft recovery characteristics (trr < 65ns).It has half the recovery time of ultrafast diodes and is of silicon nitride passivated ion-implanted epitaxial planar construction. The RHRP30120 is intended for use as a freewheeling/clamping diode and rectifier in a variety of high frequency switching power supplies and other power switching applications. Its low stored charge and hyperfast soft recoveryminimize ringing and electrical noise in many power switching circuits, reducing power loss in the switching transistors.

Parametrics

RHRP30120 absolute maximum ratings: (1)Peak Repetitive Reverse Voltage VRRM: 1200 V; (2)Working Peak Reverse Voltage VRWM: 1200 V; (3)DC Blocking Voltage VR: 1200 V; (4)Average Rectified Forward Current IF(AV): 30 A; (5)Repetitive Peak Surge Current IFRM: 60 A; (6)Nonrepetitive Peak Surge Current IFSM: 300 A; (7)Maximum Power Dissipation PD: 125 W; (8)Avalanche Energy EAVL: 30 mJ; (9)Operating and Storage Temperature TSTG, TJ: -65 to 175℃.

Features

RHRP30120 features: (1)Hyperfast with Soft Recovery: <65ns; (2)Operating Temperature: 175℃; (3)Reverse Voltage: 1200V; (4)Avalanche Energy Rated; (5)Planar Construction.

Diagrams

RHRP30120 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

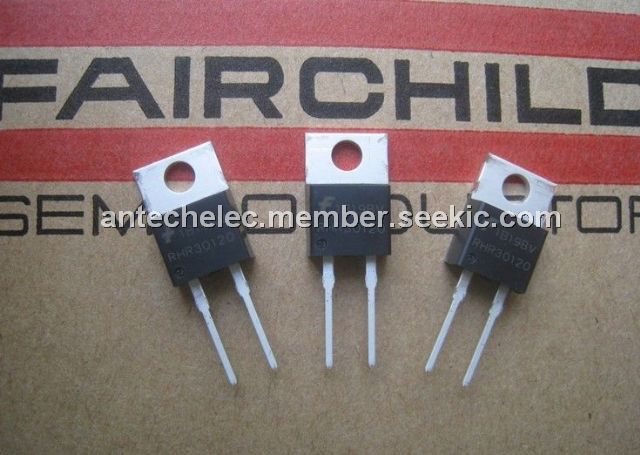

RHRP30120
RHRP30120

Fairchild Semiconductor

Rectifiers 30A 1200V

Data Sheet

0-1: $1.34
1-25: $1.20
25-100: $1.08
100-250: $0.96
RHRP30120_Q
RHRP30120_Q

Fairchild Semiconductor

Rectifiers 30A 1200V

Data Sheet

Negotiable
