Product Summary

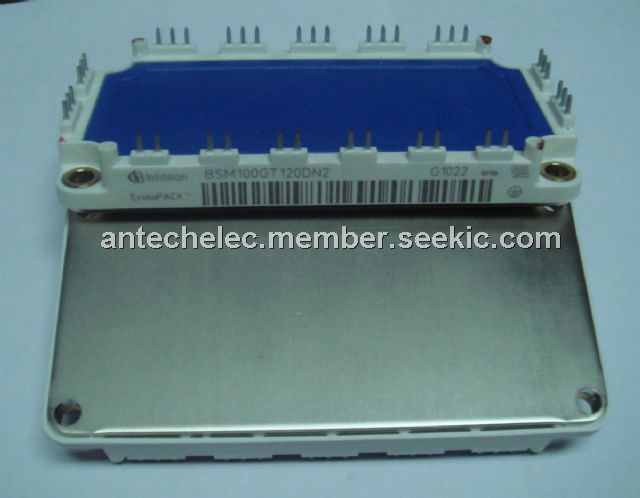

The BSM100GT120DN2 is an IGBT Power Module.

Parametrics

BSM100GT120DN2 absolute maximum ratings: (1)Collector-emitter voltage VCE: 1200 V; (2)Collector-gate voltage RGE = 20 kW VCGR: 1200V; (3)Gate-emitter voltage VGE: ± 20V; (4)DC collector current IC: 150 A; (5)Pulsed collector current, tp = 1 ms ICpuls: 300A; (6)Power dissipation per IGBT TC = 25 ℃ Ptot: 680 W; (7)Chip temperature Tj: + 150 ℃; (8)Storage temperature Tstg: -55 to + 150℃.

Features

BSM100GT120DN2 features: (1)Three single switches; (2)Including fast free-wheeling diodes; (3)Package with insulated metal base plate; (4)Solderable Terminals.

Diagrams

BSM100GT120DN2 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
BSM100GT120DN2
BSM100GT120DN2

Infineon Technologies

IGBT Modules 1200V 100A TRIPACK

Data Sheet

Negotiable
