Product Summary

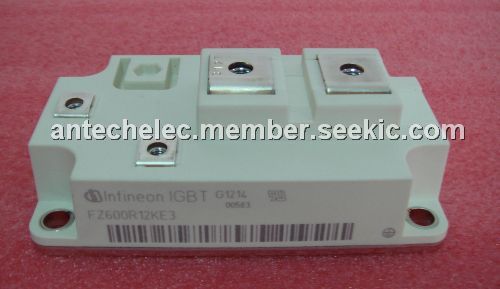

The FZ600R12KE3 is a 62mm C-Series module with Trench/Fieldstop IGBT3 and Emitter Controlled 3 diode. Applications include high power converters, motor drives, ups systems ans wind turbines.
Parametrics
FZ600R12KE3 absolute maximum ratings: (1)collector-emitter voltage: 1200V; (2)DC-collector current: 900A; (3)repetitive peak collector current: 1200A; (4)total power dissipation: 2800W; (5)gate-emitter peak voltage: ±20V.
Features
FZ600R12KE3 features: (1)Low switching losses; (2)Unbeatable robustness; (3)Package withe CTI>400; (4)High creepage and clearance distances; (5)Isolated base plate; (6)Standard housing.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FZ600R12KE3 |
Infineon Technologies |
IGBT Modules 1200V 600A SINGLE |
Data Sheet |
|
|
|||||||||||
FZ600R12KE3B1 |
Infineon Technologies |
IGBT Modules N-CH 1.2KV 900A |
Data Sheet |
|
|
|||||||||||
FZ600R12KE3S |
Infineon Technologies |
IGBT Transistors 1200V 600A SINGLE |
Data Sheet |
|
|
